Initial Impression

The paper mentions 4 main areas that AI can helps:

1. Depth estimation
2. Reconstruction
3. Compression
4. Quelity evaluation

Abstract

Background

• Traditional cameras capture only 2D images.
• Light field imaging records the direction of light rays, enabling realistic and immersive 3D-like representations.

Motivation

• Light field data provides richer visual information but comes with large data volume and high computational cost.
• Machine learning and deep networks offer efficient and intelligent ways to process this data.

Research Focus

Learning-based methods are applied to:

• Depth estimation
• Reconstruction and super-resolution
• Compression and quality enhancement

Paper Goals

The paper surveys existing learning-based techniques, summarizes the most promising frameworks, reviews current datasets, and evaluation methods and outlook for future research directions.

1. Introduction

Concept and Potential

• Light field imaging is a promising 3D imaging technology that records light rays traveling through every point in space and in every direction.
• Unlike 2D photography, it captures angular information, providing a sense of depth, realism, and immersion.
• This enables photo-realistic rendering and supports 6-DoF (Degrees of Freedom) experiences for next-generation immersive media, broadcasting, and gaming.

Market and Applications

• The light field market is expanding rapidly, driven by glasses-free 3D displays and multi-view visualization systems.
• It supports a range of applications such as virtual reality, augmented reality, 3D reconstruction, and computational photography.

Challenges and Processing Tasks

• High-dimensional light field data introduces issues like data redundancy, storage complexity, and inter-view correlation.
• Essential processing tasks include:
  • Spatial and angular super-resolution to enhance image quality
  • Compression algorithms for efficient data storage and transmission
  • Depth estimation for 3D scene reconstruction
• These tasks are more complex than traditional 2D image processing due to added angular dimensions.

Shift Toward Learning-Based Solutions

• Traditional geometry-based methods struggle with large datasets and occlusion problems.
• Deep learning and data-driven frameworks now dominate, improving efficiency and performance in reconstruction, compression, and depth estimation.
• Learning frameworks enable automation and scalability, addressing the computational challenges of high-dimensional data.

Purpose and Structure of the Paper

• This review provides a comprehensive overview of learning-based solutions for light field imaging.
• It discusses:
  1. Fundamentals of light field imaging and data acquisition
  2. Key processing tasks and related learning frameworks
  3. Benchmark datasets and evaluation methods
  4. Current challenges and future research directions
• The goal is to summarize progress, identify open issues, and provide a roadmap for future research in learning-based light field processing.

2. Light field imaging background

2.1 Light Field Fundamentals

Concept of the Plenoptic Function

• To reproduce realistic 3D scenes, cameras must capture light from many viewpoints.

• A light field describes all light rays in 3D space — their positions, directions, colors, and intensity.

• The complete description is given by the plenoptic function, a 7-dimensional (7D) function:

  $$ P(θ, φ, λ, τ, V_x, V_y, V_z) $$

  which includes direction, wavelength, time, and position of every ray in space.

Dimensional Reduction

• Capturing the full 7D plenoptic function is practically impossible.
• Under constant lighting and static scenes, wavelength (λ) and time (τ) can be ignored.
• This simplifies the representation to a 5D function:

$$ P(θ, φ, V_x, V_y, V_z) $$

• The 5D form forms the foundation for Neural Radiance Fields (NeRF), while further simplification leads to a 4D light field representation.

Light Field Representation

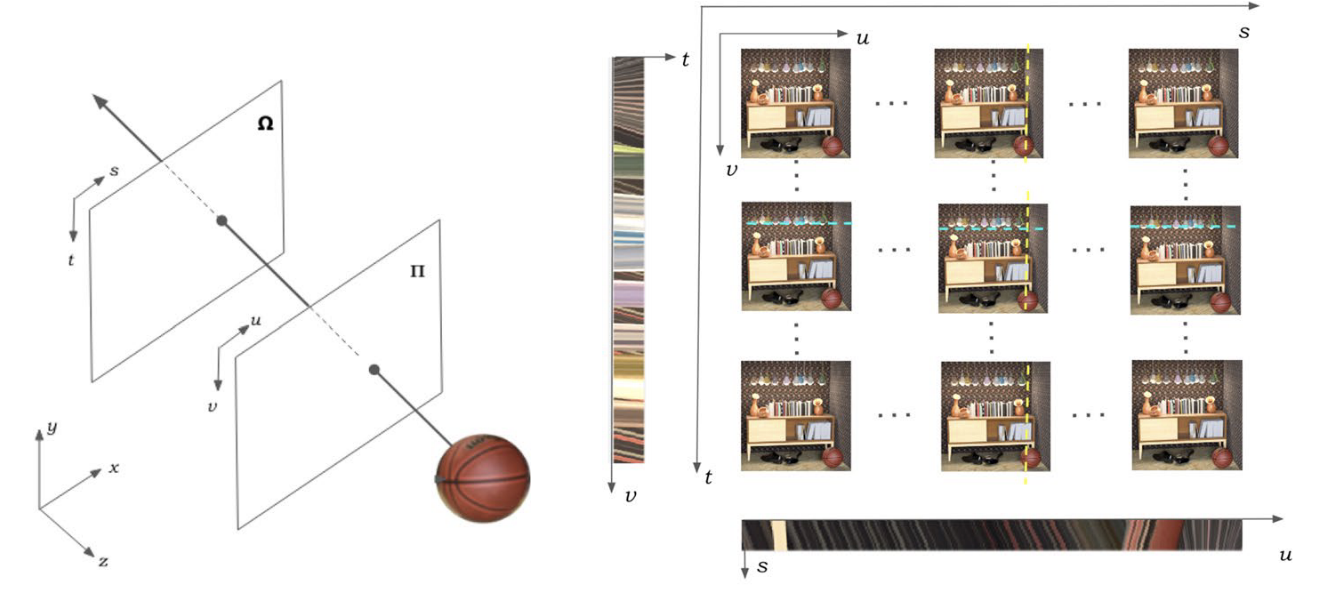

• Two-Plane Parameterization

  • The 4D light field assumes light rays travel in straight lines.
  • Each ray is defined by its intersection with two parallel planes:
    • (u, v) → spatial coordinates on the image/focal plane (Ω)
    • (s, t) → coordinates on the camera plane (Π)
  • The resulting function:

  $$ P(u, v, s, t) $$



  • defines the light field in terms of spatial and angular information.
  • This two-plane parameterization makes light fields easier to store, process, and compress using 2D image arrays.
  • A 4D light field can be expressed as an array of 2D images indexed by (u, v) for spatial coordinates and (s, t) for different viewpoints.
  • This enables the use of standard 2D codecs for compression and native 2D algorithms for processing.

• Epipolar Plane Image (EPI)

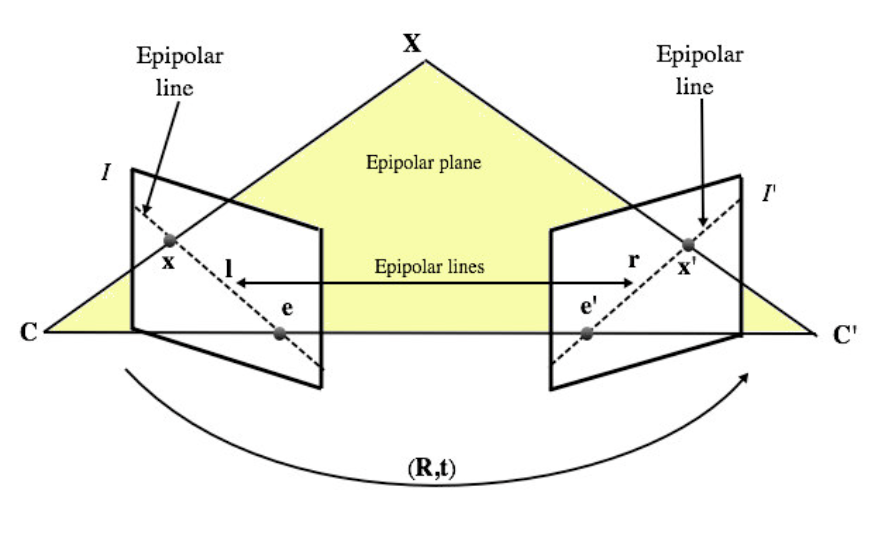

  • Epipolar Plane Image (EPI), a 2D slice of the light field showing spatial–angular relationships.
    • Looks like a single 2D picture made by stacking the same pixel row from all those camera views.
    • Coordinates → (u, s) or (v, t) (only one spatial + one view direction)
  • In the EPI, each object in the scene becomes a slanted line:
    • If an object is close, its line is steeper (because it moves more between views).
    • If it’s far, its line is flatter (moves less).
  • Lines in the EPI correspond to scene depth — analyzing their slopes allows depth estimation and 3D reconstruction.



  Epipolar Plane Image (EPI)

2.2 Light Field Acquisition

Overview

Light fields can be acquired by single plenoptic cameras, camera arrays, or synthetic and LiDAR-based systems, each balancing data density, resolution, and complexity.

Single-Camera Systems

• Plenoptic (lenslet-based) cameras use microlens arrays to capture dense angular information in one shot.
• Examples: Raytrix and Lytro cameras.
  • Lytro → The Lytro camera captures a 4-D light field by recording many tiny viewpoint images through its microlens array — those images form the SAI stack.

Multi-Camera Arrays

• Arrays of monocular cameras (planar or spherical) capture scenes from different viewpoints.
• The camera layout defines the angular sampling and overall field of view.

Other Methods

• Computer-generated light fields provide accurate depth maps for benchmarking.
• Handheld or SLAM-based systems reconstruct light fields from multiple frames.
• LiDAR-assisted capture combines sensors and cameras for precise, automated 3D data.

2.3 Light field visualization

Goal and Use Cases

• The main goal is to provide a true 3D visual experience, essential for immersive and interactive applications.
• Visualization may be passive (no interaction) or active (viewer can move or rotate objects).
• Used in areas like medical imaging, VR/AR, and 3D display systems.

Visualization Approaches

• Based on the 4D light-field representation combining spatial and angular data.
• Passive use cases render fixed views; active use cases synthesize new views via view interpolation. (View interpolation means creating new viewpoints images that were never actually captured by a real camera, but are mathematically generated from nearby real ones.
• Rendering quality strongly influences perceptual realism.

Display Principles and Challenges

• Two key properties:
  • Angular resolution (baseline between views)
    • the baseline = the distance between two camera viewpoints.
      • Small baseline → cameras are close together
      • Wide baseline → cameras are far apart
  • Spatial resolution (image detail)
• 3D displays must reproduce directional light rays accurately to recreate depth and realism.
• Capturing dense samples and rendering multiple view angles remain computationally demanding.

Perceptual Limitations

• Standard 2D displays lack realistic cues like vergence and accommodation, limiting immersion.
• Light-field displays address this by replicating real light rays to the viewer’s eyes but face:
  • Finite ray sampling
  • Vergence–accommodation conflict
  • Restricted field of view (FoV)
  • Horizontal- or vertical-parallax-only designs causing viewing discomfort.

3. Learning‑based light field processing

This section summarizes the most prominent light field processing tasks studied in the literature and highlights the learning-based imaging techniques deployed for each processing task.

Terms and explanation:

Details about the difference between Light Field representation:

Relationship between Disparity volume and Depth map:

Disparity and depth are inversely related:

$$ \text{Depth} = \frac{f \times B}{\text{Disparity}} $$

where:

• (f) = focal length of the camera,
• (B) = distance between two camera views (baseline).

So:

Large disparity (big shift) → close object. Small disparity (tiny shift) → far object.

Depth map

3.1 Depth estimation

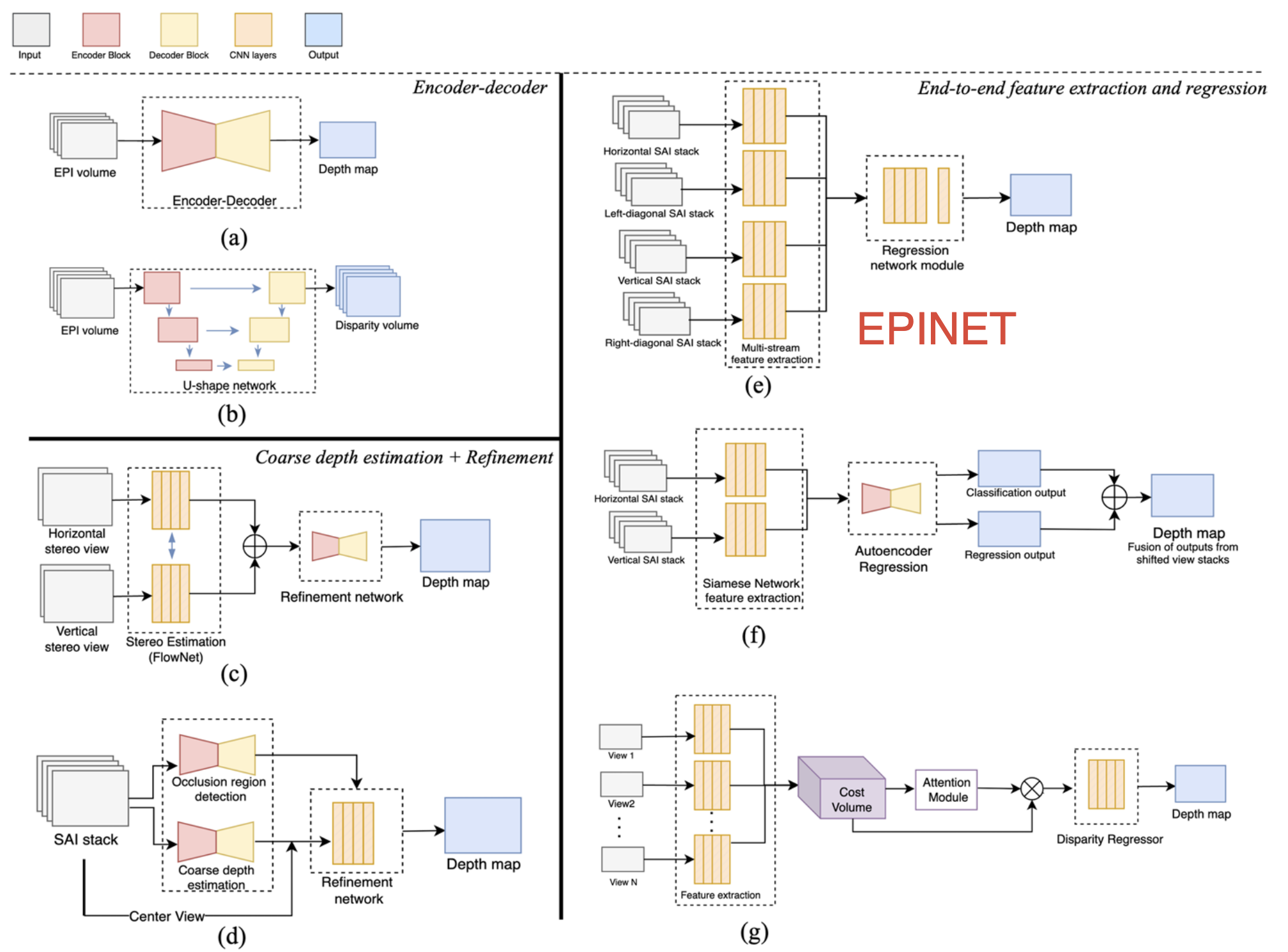

Depth estimation model architecture

Overview

• Goal: Estimate the distance of each pixel from the camera to recover the scene’s 3D structure.
• Light field imaging enables capturing a scene from multiple viewpoints so depth information is implicitly encoded in the light field representation and can be acquired by computing the inter-view pixel disparity information. disparity volume → depth map
• Main challenges: occlusions, non-Lambertian surfaces, and texture-less regions, which make accurate estimation difficult.
  • A Lambertian surface is an ideal matte surface — it reflects light equally in all directions. That means no matter where you look from, the brightness of that point stays the same.
• Recent progress focuses on learning-based approaches, achieving higher accuracy than traditional geometry-based methods.

Autoencoders

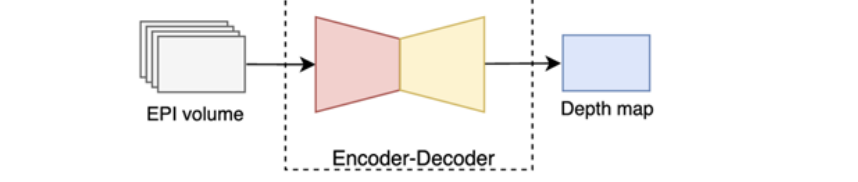

• Take an EPI volume → compress it (encoder) → learn the hidden features → expand it (decoder).

• Classical method:

  • Heber & Pock:
    • five-block CNN estimating line orientation in EPIs;
      • Orientation refers to the direction each camera is facing.

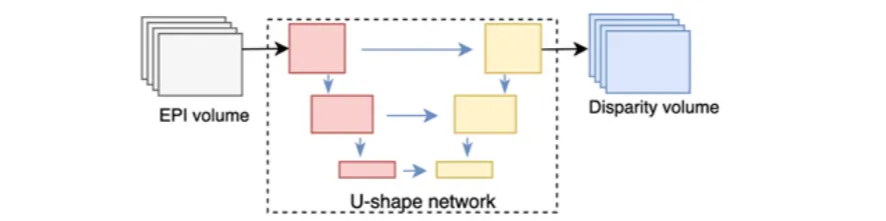

    • later extended to a U-shaped encoder–decoder,
    • Further to U-shaped encoder–decoder with skip connections and 3D filters.



  Step	Explanation
  Input	Horizontal and vertical EPI volumes (from the light field). Each EPI shows slanted lines — the slope encodes depth.
  Model	A 5-block CNN that scans small “windows” (patches) of the EPI. Each CNN layer extracts features and estimates the orientation (slope) of the EPI lines. Later versions evolved into a U-shaped encoder–decoder (U-Net) for better reconstruction.
  Output	A depth map, where every pixel’s value = estimated distance from the camera.

  • Alperovich et al.:

    • an autoencoder that encodes horizontal and vertical EPI stacks simultaneously using six stages of residual blocks to improve robustness.
    • Then, the compressed representation is expanded using three decoder pathways to address the disparity, diffusion, and specularity estimation problems.



    Step	Explanation
    Input	Combined horizontal + vertical EPI stacks from the light field.
    Model	An autoencoder with: 6 residual blocks (for stronger feature extraction) in the encoder, and 3 decoder branches (to handle disparity, diffusion, specularity). It compresses the light field into a latent code, then reconstructs richer outputs.
    Output	A disparity volume — a 3D array where each pixel position stores multiple disparity hypotheses (possible shifts). From this volume, a final depth map can be derived later.

• Analysis:

  • Pros: captures compact depth features, handles EPI geometry directly.
  • Cons: computationally heavy; limited to 2D EPI slices, less effective in occluded regions.

Stereo Matching and Refinement

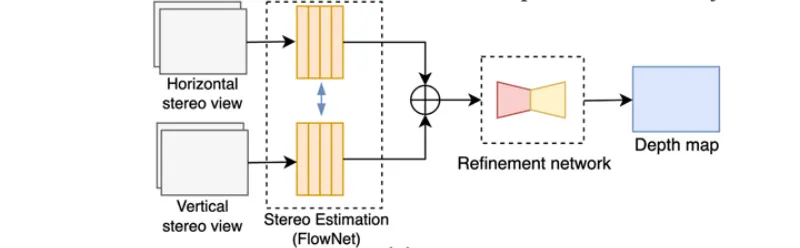

• Computes disparity between SAIs using neural stereo-matching networks.

• Typical pipeline:

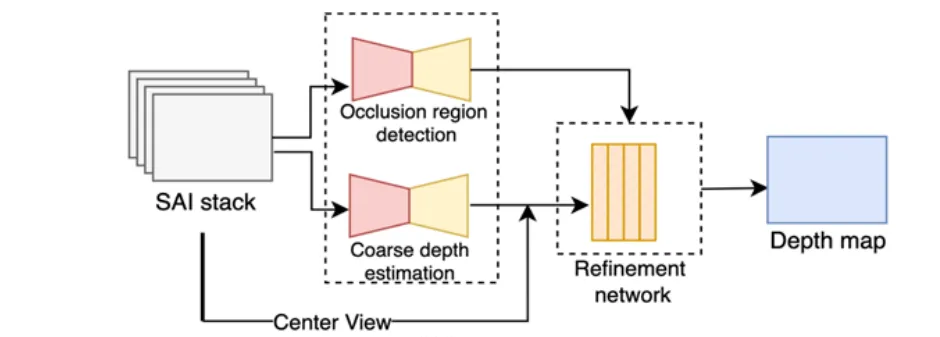

  1. Coarse disparity estimation via networks like FlowNet 2.0 or encoder–decoder CNNs.
  2. Refinement using residual or occlusion-aware learning to correct depth errors.

• Examples:

  • Rogge et al. (belief propagation + residual refinement);



  • Guo et al. (encoder–decoder concatenation of SAIs).



• Analysis:

  • Pros: exploits full 4D light-field correlations, good for complex geometry.
  • Cons: high computation cost; sensitive to reflections and non-Lambertian surfaces.

End-to-End Feature Extraction and Disparity Regression

• Fully end-to-end CNNs learn features and regress depth directly.

• Methods:

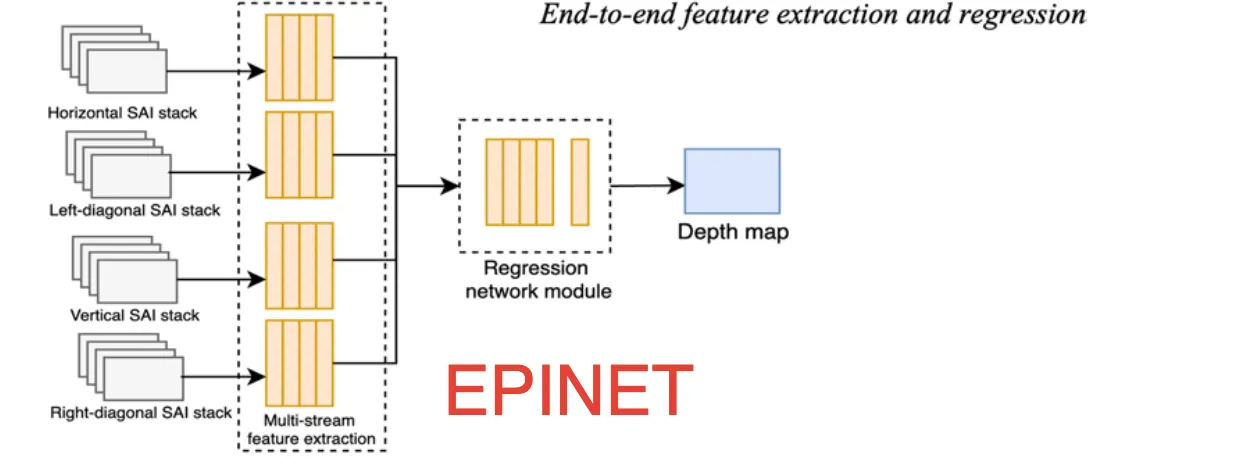

  • Epinet: Horizontal, vertical, and diagonal SAI stacks → Multi-stream CNN feature extraction → Regression network → Depth map

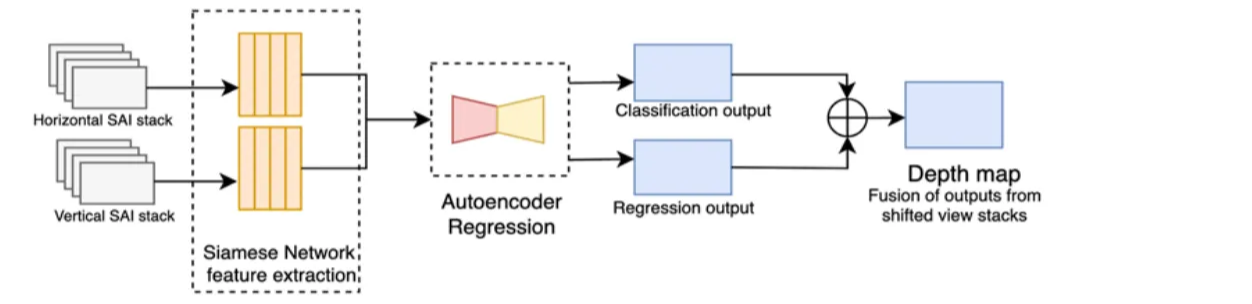

  • Leistner et al.: Vertical & horizontal SAI stacks → Siamese U-Net → Autoencoder regression module → Classification + regression fusion → Depth map



  • Two-stream CNN: Horizontal & vertical EPIs → Multi-scale feature extraction (four convolutional stages) → Feature concatenation → Multi-label regression → Depth map
  • Zhu et al.: Focal stacks + center view + EPIs → Hybrid feature extraction → Fully connected + softmax layers → Pixel-wise disparity classification → Depth map
  • Tsai et al.: Multi-view SAIs → Residual blocks + spatial pyramid pooling → Cost volume construction + attention module → Disparity regression → Depth map

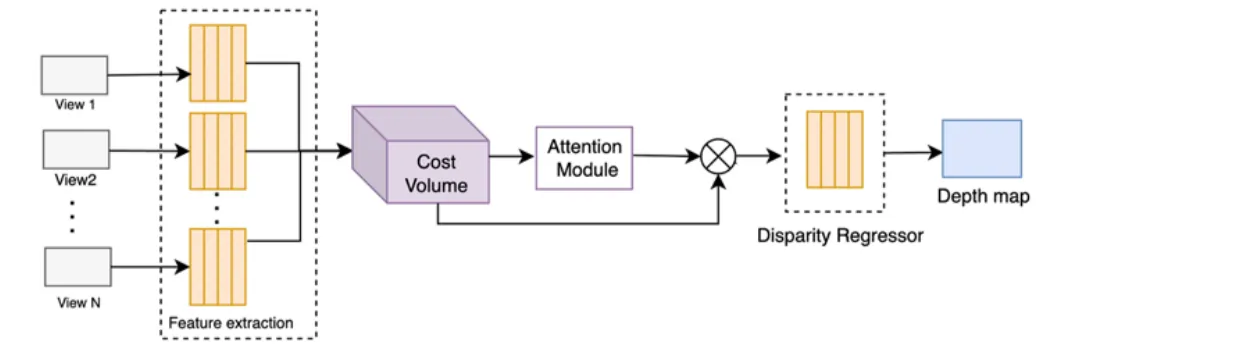

  • Multi-scale Cost-Volume Method: Shifted SAI feature maps (multi-disparity levels) → 4D cost volume (low memory footprint) → Multi-scale feature extraction → Regression → Depth map

• Analysis:

  • Pros: highest accuracy, unified optimization of feature + disparity learning.
  • Cons: large data/training demand; reduced performance on wide-baseline scenes.

3.2 Light field reconstruction

To enable higher spatial and angular resolutions, the development of light field reconstruction/ super-resolution (SR) methods has gained significant attention.

• Spatial SR = make each image (each view) sharper — more pixels, more detail.
• Angular SR = make more viewpoints — fill in missing views between existing ones.

Light-field SR must improve both:

1. Spatial resolution → each view looks higher spatial resolution.
2. Angular consistency → all views agree about geometry and depth.

Spatial super‑resolution

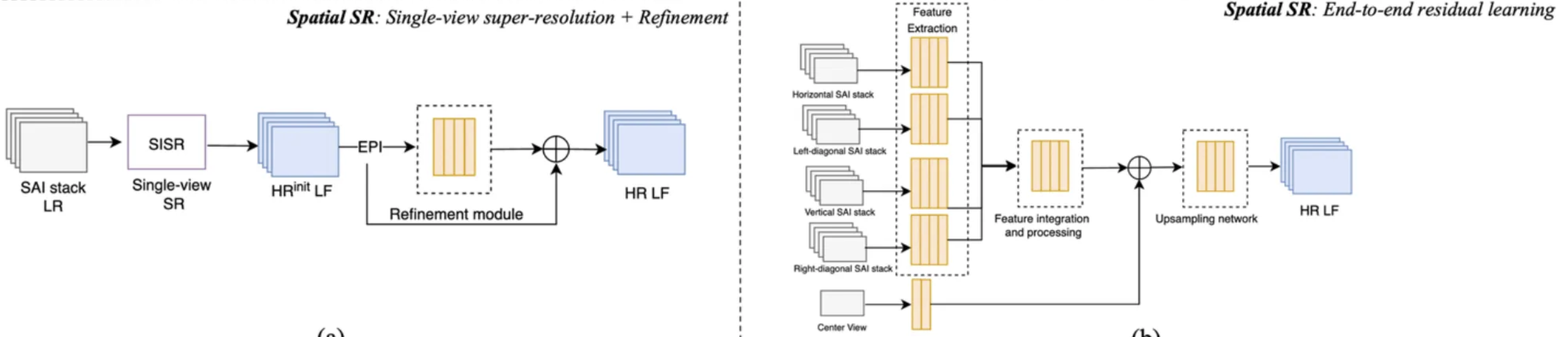

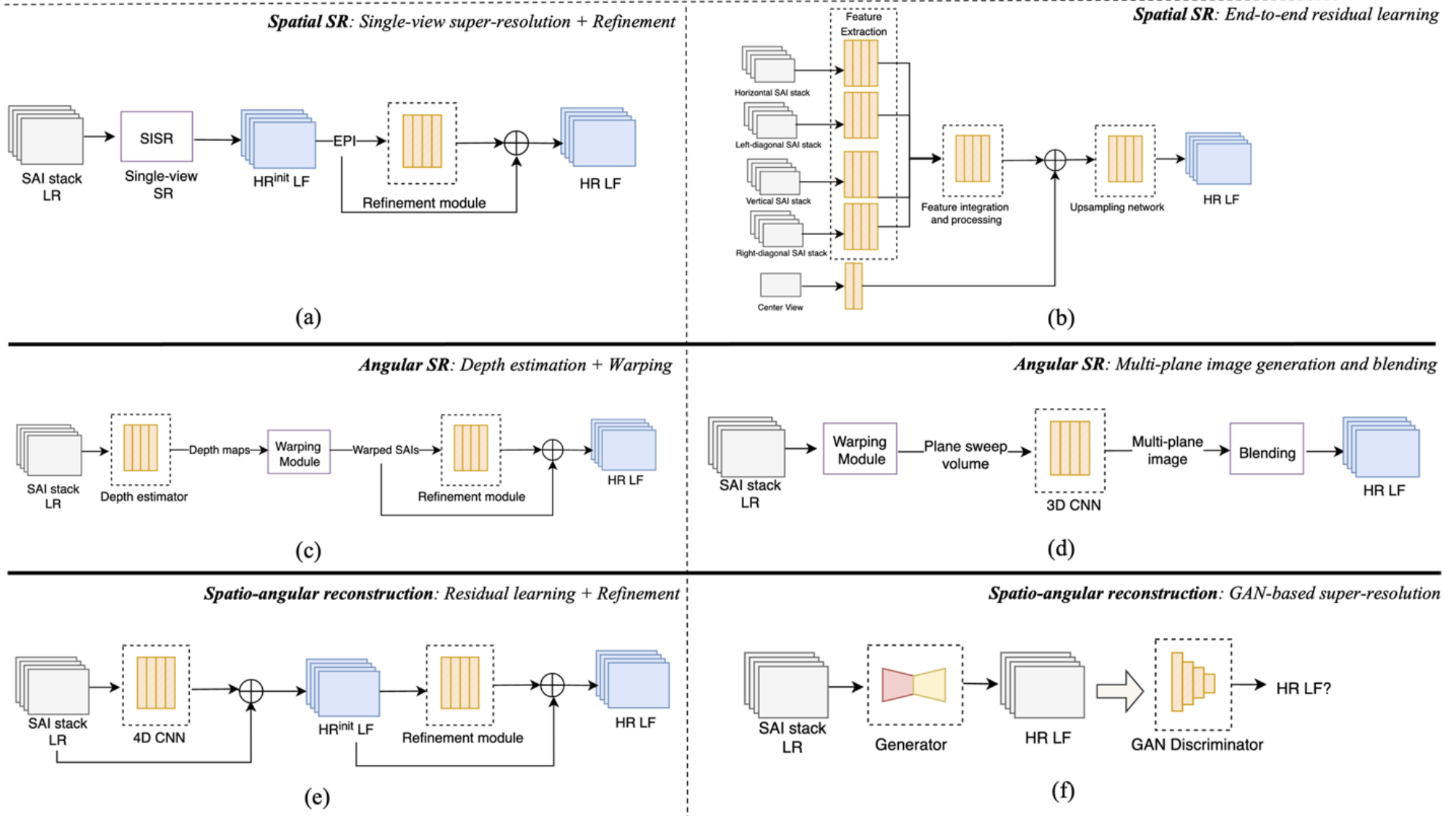

Examples of architectures for the spatial, angular, and spatio-angular super-resolution (SR) frameworks.

• a → Single-view SR using single image super-resolution (SISR) network and inter-view enhancement,
• b → end-to-end residual learning,
• c → warping and residual learning for refinement,
• d → multi-plane image generation,
• e → residual learning using 4D CNNs and refinement, ****

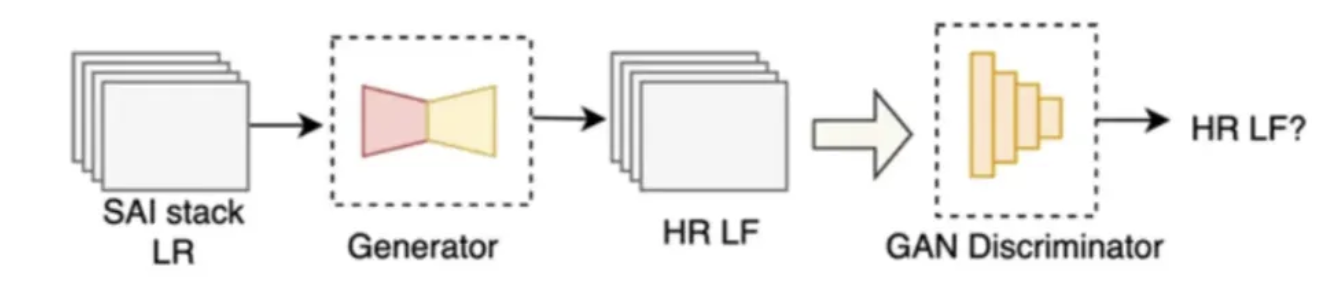

• f → GAN-based method

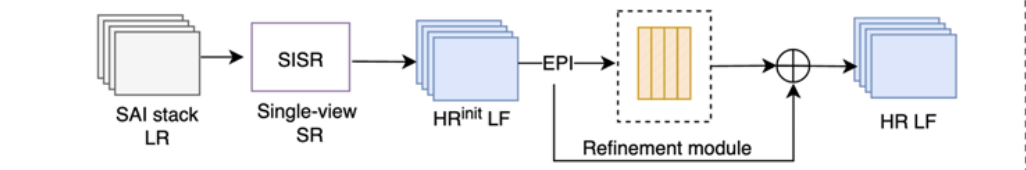

Single‑view super‑resolution and refinement

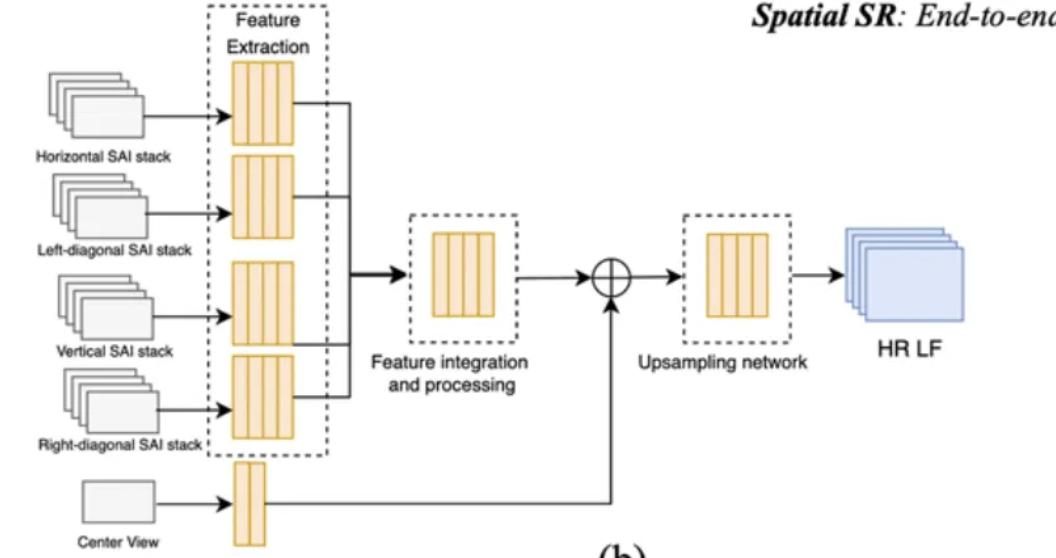

End‑to‑end residual learning

Upsampling means making an image larger — that is, increasing its resolution by creating more pixels.

Angular super‑resolution

Angular Super-Resolution (SR) means synthesizing new in-between views to make the light field smoother and more complete. (view synthesis)

EPI super‑resolution

All of these models have the same basic structure:

1. Start from a blurry / low-angular-resolution light field (few viewpoints).
2. Use deep networks to predict high-frequency details (the fine geometry and textures missing in the low version).
3. Reconstruct the high-angular-resolution (HR) light field, which includes the new views.

Depth estimation and warping

• Disparity is the shift of the same object’s position between two different views.
• Warping = using disparity to reposition pixels.

Some basics:

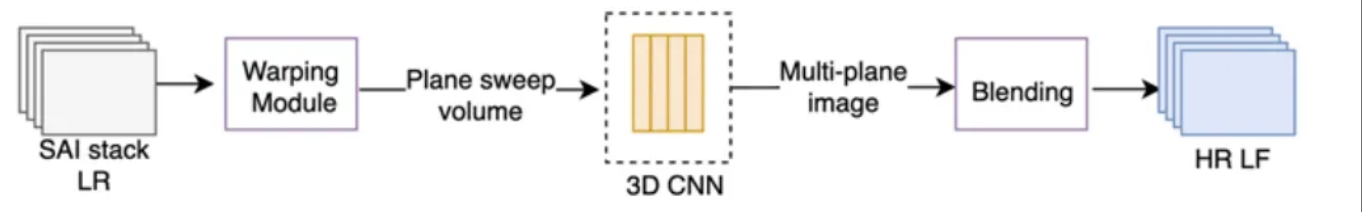

Multi‑plane image generation (MPI generation)

Spatio‑angular reconstruction

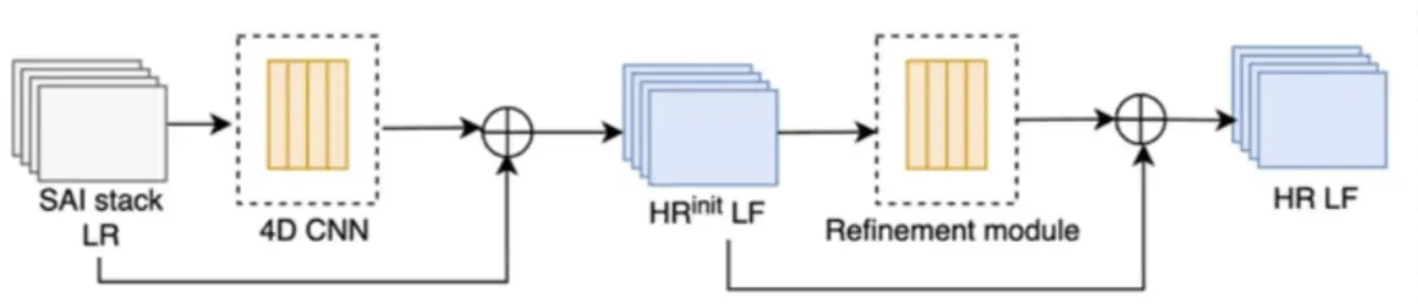

Residual learning using 4D CNNs and refinement

GAN-based method

Neural scene representation

Researchers started using neural networks to represent 3D scenes which replaces 2D pictures.

From image-based to neural 3D representations

• Earlier works used image-based rendering (combine nearby views).
• Recent advances use neural networks to represent and render 3D scenes directly.
• 3D representations can be:
  • Explicit: meshes, voxels, point clouds.
  • Implicit: continuous functions learned by networks + differentiable ray marching.

NeRF — the core idea

• Neural Radiance Fields (NeRF) represent a scene using an MLP (multi-layer perceptron).
  • The network takes 5D coordinates → (x, y, z, θ, φ): spatial position + viewing direction.
  • It outputs:
    • Density (geometry)
    • Color (view-dependent radiance).
• Rendering is done by volume rendering along camera rays.

• NeRF uses a coarse network (for rough geometry) and a fine network (for detailed structure).
• Analysis:
  • Pros: realistic view synthesis.
  • Cons: very slow training and rendering.

Methods to improve speed and efficiency

Several approaches speed up NeRF by changing how the scene is represented, they replaced the big neural network with simpler structures:

Methods to improve quality

Trade-offs and current challenges:

• Fast methods (gaussian) → train quickly, but lose visual quality.
• High-quality methods (NeRF, Mip-NeRF 360) → photorealistic but slow to train.
  • Explicit methods also can’t be optimized directly with gradients → need to convert trained implicit NeRFs into their format (adds complexity).
• Real-time + high-quality rendering remains an open research challenge.

3.3 Compression

An efficient codec should be able to explore:

• not only the spatial and angular redundancies independently (as two-dimensional data),
• but also the combined spatial–angular redundancy (4D data).

The key idea of this compression architecture is bitrate saving by sparsely encoding the views.

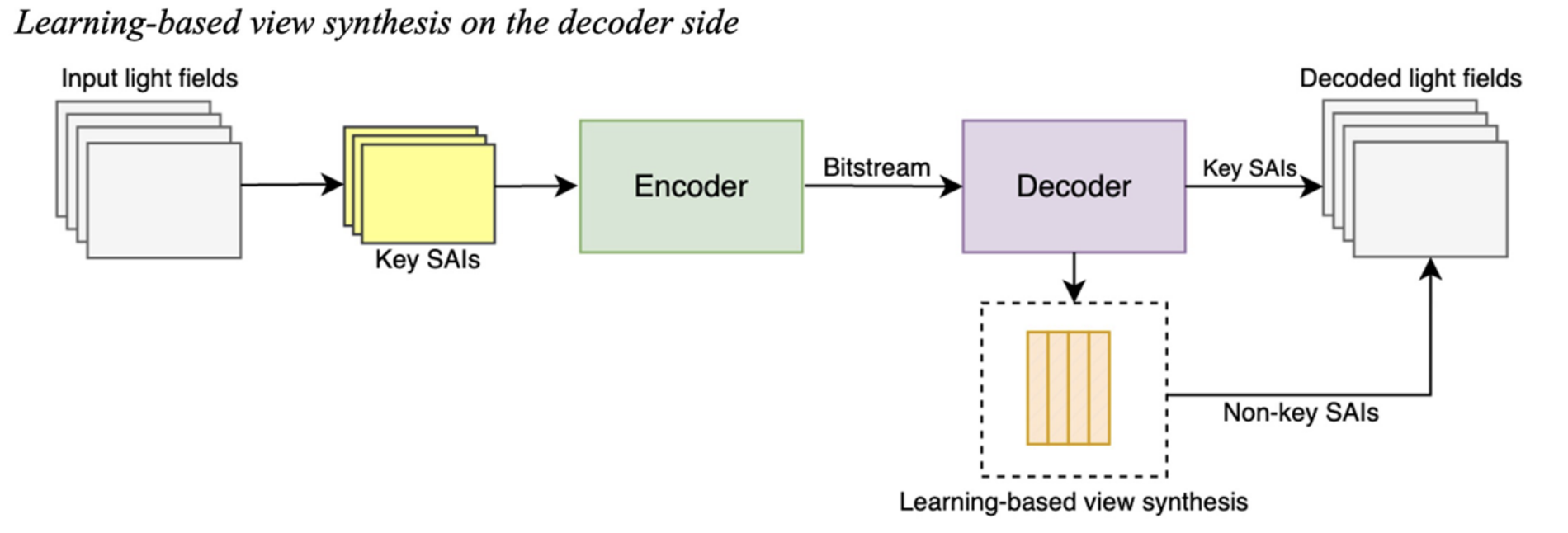

Learning-based view synthesis on the decoder side

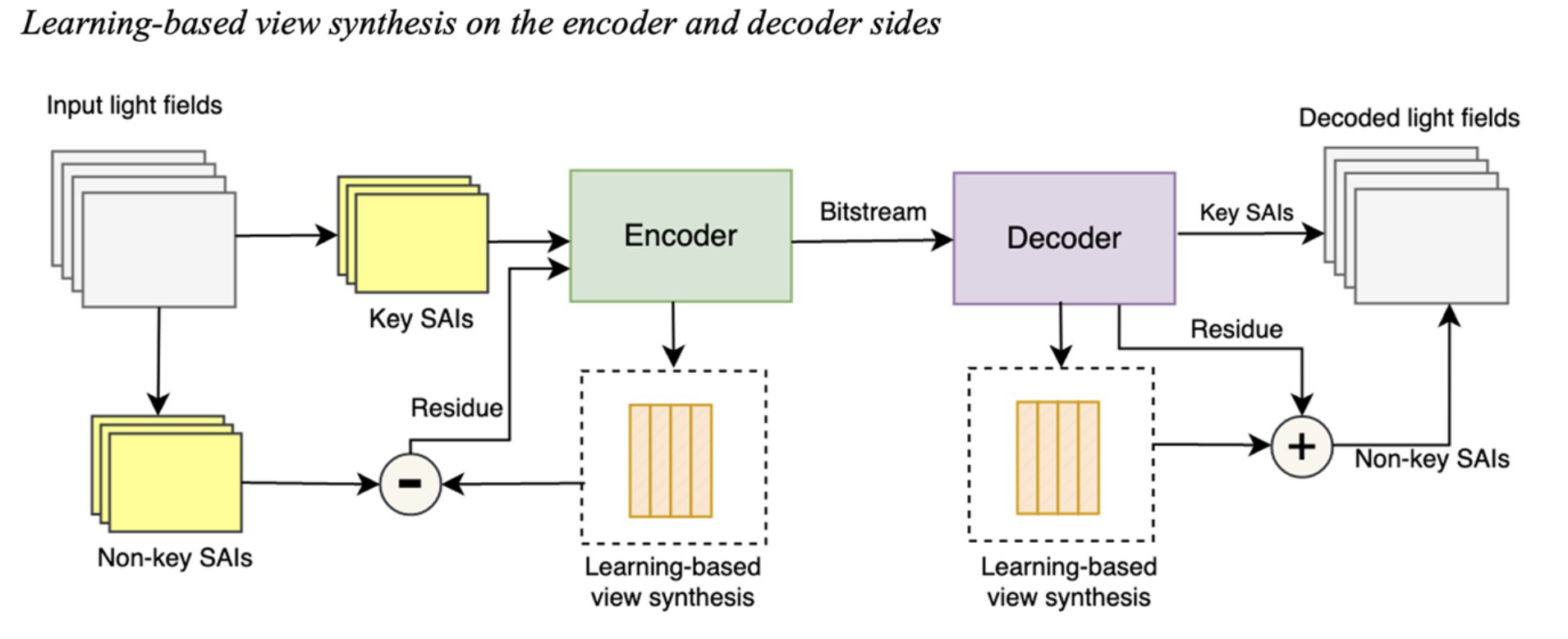

Learning-based view synthesis on the encoder and decoder sides

Idea:

• Encode only a few key views (the main ones),
• Use deep learning to predict or reconstruct the missing views (non-key views),
• Send only the residual errors to refine those predictions.

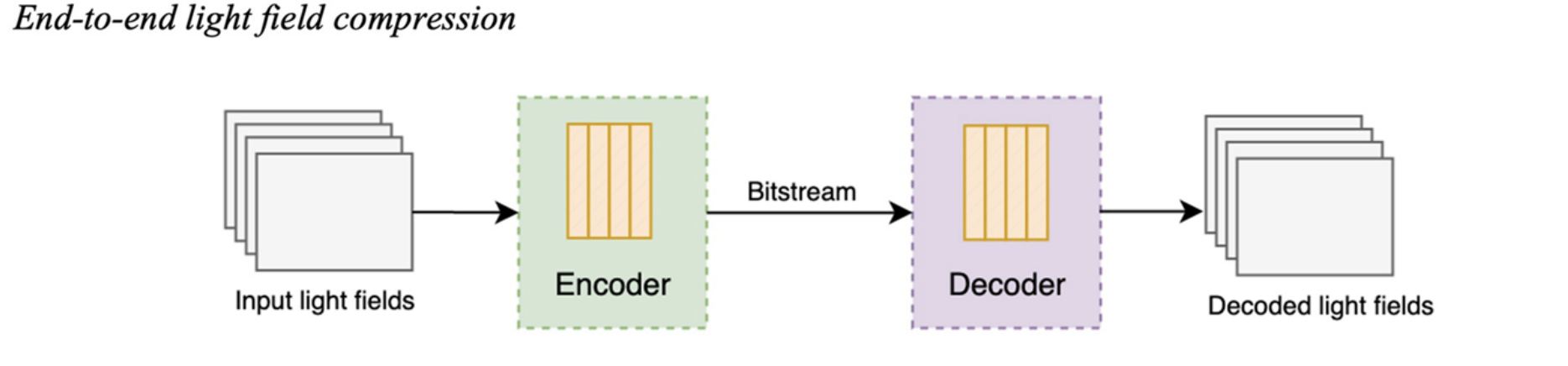

End-to-end light field compression architecture

End-to-end schemes are gaining more attention due to their effectiveness in image compression.

3.4 Other light field imaging applications

Light-field (LF) images are more powerful than normal 2D photos because they capture depth, focus, and parallax — this allows better performance in many computer vision tasks.

Deep learning methods are now being used to apply light-field data to various new areas.

Saliency Detection (SOD)

• Goal: detect which objects or regions attract human attention.
• LF advantage: provides both spatial and angular information, giving richer clues about object boundaries and depth.
• Typical model: encoder–decoder two-stream networks:
  • One stream uses all-in-focus (center) images,
  • The other stream uses focal stacks or multi-view features.
• A comprehensive review compares deep LF-SOD models with standard RGB-D models.

Face Recognition

• Goal: identify faces more accurately using multi-view data from light fields.
• LF advantage: combines intra-view (within one image) and inter-view (across multiple angles) features.
• Methods:
  • VGG features with LSTM layers to model view changes.
  • Capsule networks with a pose matrix to handle viewpoint shifts.
• Datasets introduced:
  • LFFW (Light Field Faces in the Wild),
  • LFFC (Light Field Face Constrained) — for benchmarking LF face recognition.

Light Field Microscopy

• Goal: use LF imaging to capture and reconstruct 3D biological structures quickly.
• LF advantage: captures 3D spatial information in one camera shot → instant 3D imaging.
• Deep learning usage: improves speed and quality of reconstructions.
• Methods:
  • Encoder–decoder networks convert 2D LF inputs to 3D volume data.
  • Networks with 2D and 3D residual blocks enhance reconstruction quality.
  • Convolutional sparse coding (CSC) networks use EPIs as input for fast neuron localization.
• Applications: real-time visualization of cardiovascular or neuronal activity.
• The network uses EPIs as inputs and generates sparse codes, representing depth data, as outputs.

Other applications

• Image classification — improves feature learning using angular cues.
• Low-light imaging — LF data helps reconstruct clear images in dark conditions.

Overall, these works show that learning-based light-field imaging provides richer 3D understanding and better accuracy than normal 2D or RGB-D methods.

4. Datasets and quality assessment

Datasets

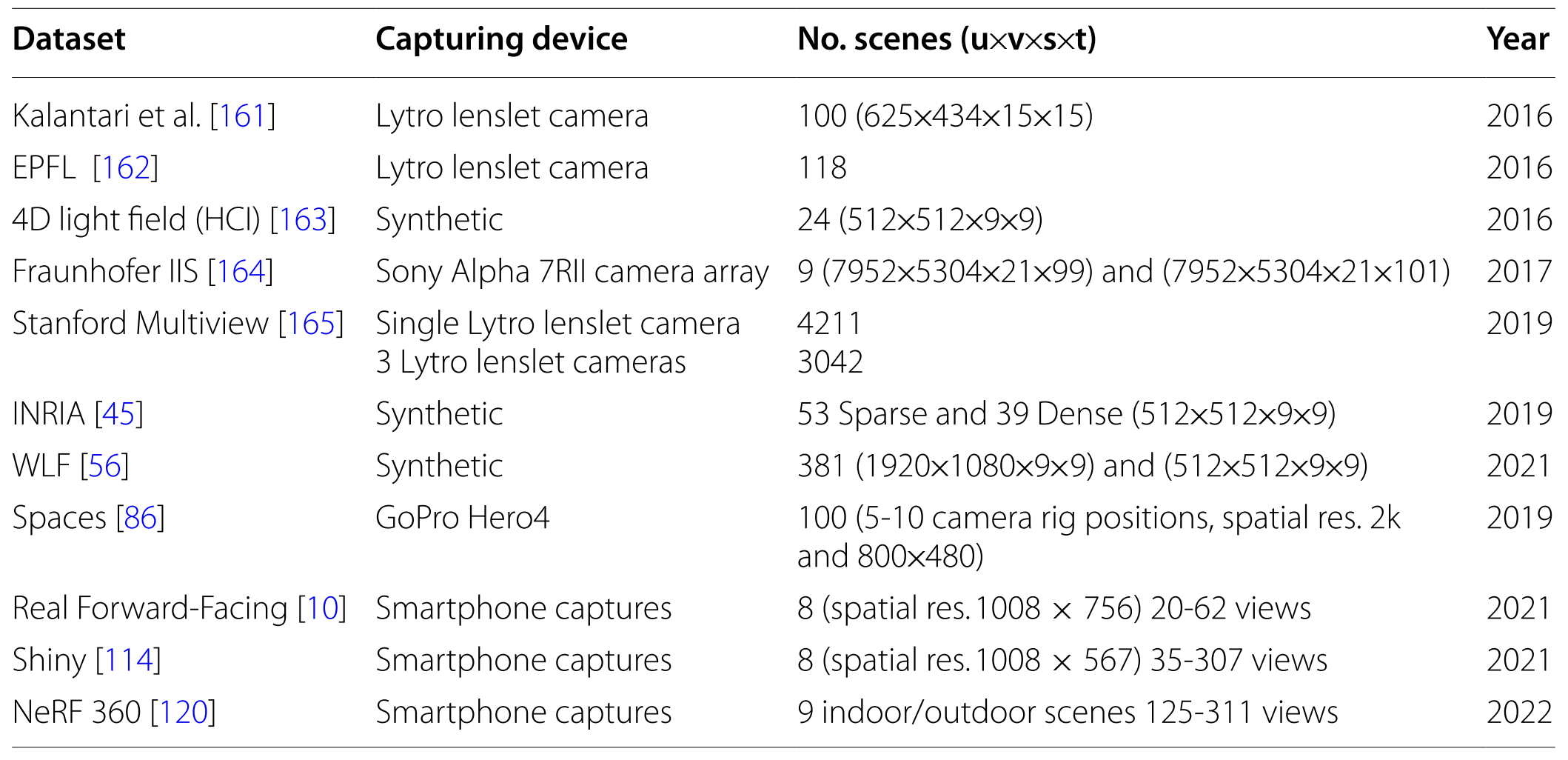

Characteristics of the light field datasets used to benchmark the light field imaging systems

Quality Assessment

• Light field imaging algorithms are typically evaluated using quantitative methods by comparing generated data to a ground-truth.
• Due to the diversity of light field acquisition procedures, distortions, and rendering processes, light field quality assessment remains a challenging task.
• A recent focus has been on developing more accurate objective algorithms that extract features from both spatial and angular domains for light field quality assessment.
• Metrics can be classified into three categories based on the availability of the reference image:
  • full-reference (FR),
  • reduced-reference (RR),
  • no-reference (NR).
• Developing NR metrics are gaining more attention due to their success in improving accuracy.
• Current learning-based light field algorithms are still only evaluated using conventional PSNR and SSIM methods.
• In this context, the IEEE established a new standard called ’IEEE P3333.1.4’, which defines metrics and provides recommended practices for light field quality assessment.
• A standardization activity, namely ’JPEG Pleno Quality Assessment’, was recently initiated within the JPEG committee aiming to explore the most promising subjective quality assessment practices as well as the objective methodologies for plenoptic modalities in the context of multiple use cases.

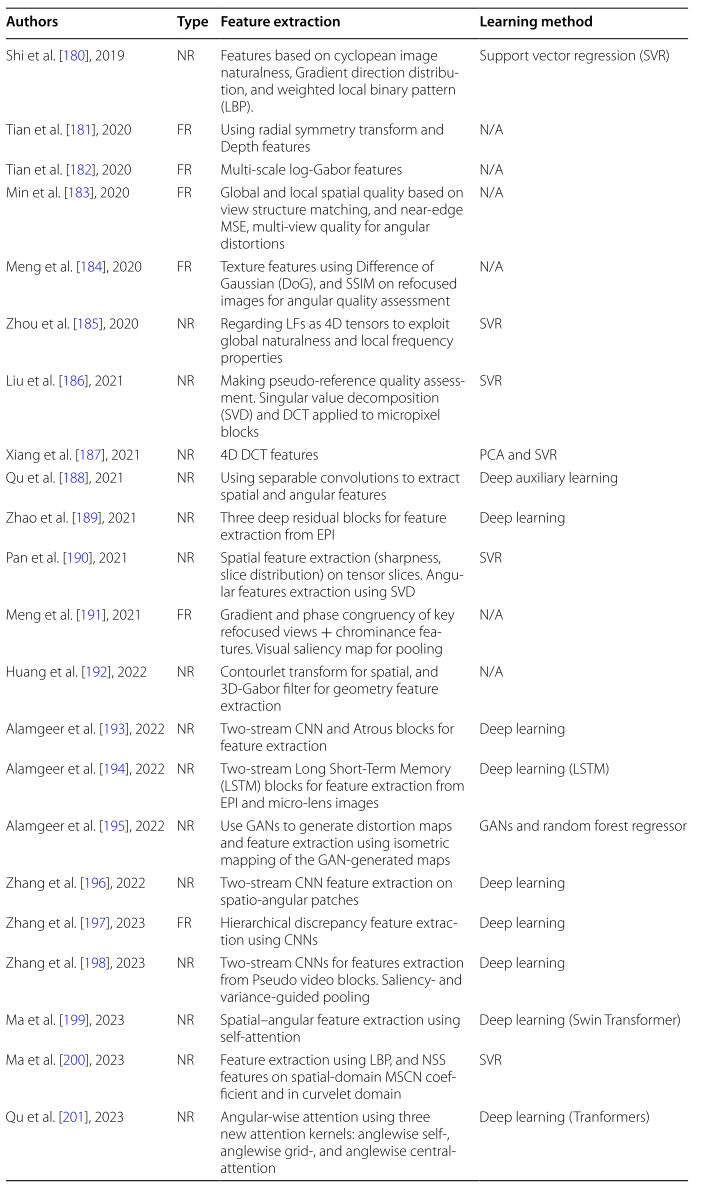

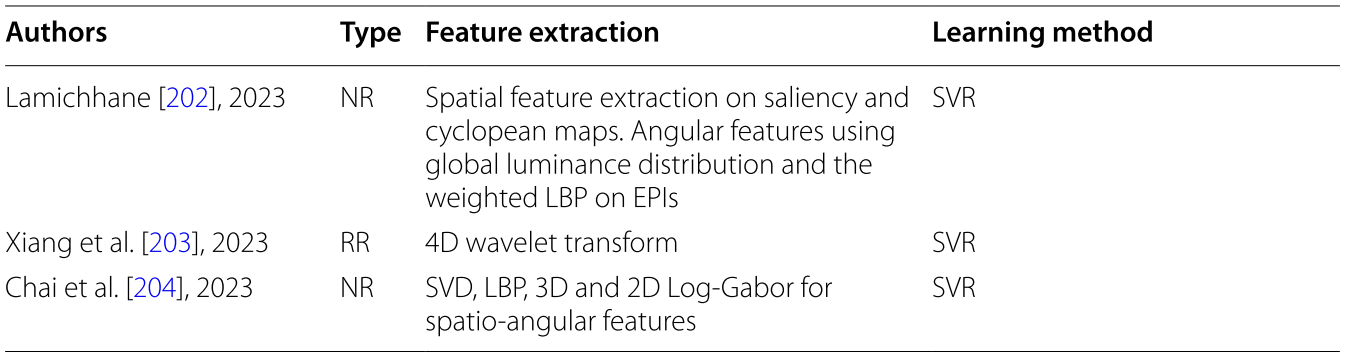

Summary of the objective quality assessment methods for light fields

5. Discussion, challenges and perspectives

• While parallel to light fields, other plenoptic modalities like point cloud and holography have also been developed.
  • Even though point clouds and holographic content processing and compression have advanced significantly in recent years, these content types may eventually need to be converted to light field views for visualization on the display.
  • Light fields provide more comprehensive information when it comes to capturing scenes.
    • Light fields capture not only the 3D objects but also the entire scene information, which can be essential in many applications like autonomous driving, that require accurate 3D recreation of the vehicle surroundings.
• Recent advances in using deep learning for spatio-angular reconstruction and the emergence of the NeRF-based approaches.
• More recent methods, such as 3D Gaussian splatting, show improvements in the quality–speed trade-off.
  • Enhancing the quality–speed trade-off could enable new use cases such as real-time telepresence and robotic tasks with fewer views for reconstruction.
• Two neural scene representations of light fields:
  • an explicit representation based on multiple SAIs
  • an implicit neural representation encodes light fields as parameters of an MLP.
• Advances in deep learning frameworks are expected to significantly improve the performance of light field processing algorithms and solve the existing challenges.
  • Better depth estimation or depth-free approaches are critical.
• Advanced methods are needed to efficiently exploit the huge amount of redundant information about the light rays in the same scene that conveys angular and spatial information
  • Now targeting the creation of a learning-based coding standard to provide competitive compression efficiency compared to state-of-the-art light field coding solutions.
• The evaluation of light field imaging systems has several shortfalls related to the content and assessment approaches available.
  • Advanced methods are needed to efficiently exploit the huge amount of redundant information about the light rays in the same scene that conveys angular and spatial information.
  • It is essential to provide more comprehensive light field datasets from both the quantitative and content diversity perspectives.
• The assessment of plenoptic image quality also faces various challenges because of the variety of quality aspects and complexity of the content when compared to the assessment of 2D images.
  • JPEG has begun developing a light field quality assessment standard, defining a framework with subjective quality assessment protocols and objective quality assessment procedures for lossy decoding of light field data within the context of multiple use cases.
  • The IEEE is also developing a standard called “P3333.1.4—Recommended Practice for the Quality Assessment of light field Imaging” that targets to establish methods of quality assessment of light field imaging based on psychophysical studies

6. Conclusions

Core Focus

Main Tasks Reviewed:

• Depth estimation, reconstruction, super-resolution, and compression.

Other Tasks:

• Microscopy, saliency, face recognition, refocusing, and relighting also benefit from learning-based methods.

Progress and Trends

Deep Learning Integration:

• AI frameworks now appear in almost every stage of light field processing.

Growth Drivers:

• Better capture and display hardware and larger datasets will accelerate progress.

Challenges

Limited Realism:

• Current systems have narrow Field of View (FoV) and Depth of Field (DoF);
• Still far from true 6-DoF free-view exploration.

Data Burden:

• Expanding datasets increase computational cost and reduce processing efficiency.

Future Outlook

Compression Evolution:

• Learning-based image compression is expected to greatly improve light field storage and transmission, making real-world applications more feasible.
